UTL 400 Watt Solar Panel 2Nos - 24V MONO PERC Solar Panel with 25 Years Warranty

This 400 watt MONO PERC solar panel is a high efficiency MONO PERC solar panel with 72 MONO PERC cells and 5 busbars solar panel, mounted in an anodized aluminum alloy frame. Its power generating capacity is 9.7 amps current at peak. It is the highest capacity solar module in 24V capacity. It is also covered with 3.2mm toughened textured glass for a long life. UTL solar panels are the latest technology and most innovative solar panels. UTL solar panels are next-generation solar panels, manufactured by using premium quality A-grade MONO PERC solar cells.

TECHNICAL SPECIFICATION:-

Solar Panel Rating:-  400 Watt

Short circuit current:- 10.31 ampere

Operating voltage at Pmax VMP:- 42.5 volt

Operating current Imp:- 9.72 ampere

Open circuit voltage VOC:- 49.79 volt

Module efficiency :- 20.26%

Maximum system voltage:- 1000 volt



DESCRIPTION:-

Panel Type:- Mono PERC

Number of Busbar:- 5BB.

Number of cells:- 72No. Mono PERC

Cell Type:- A-Grade

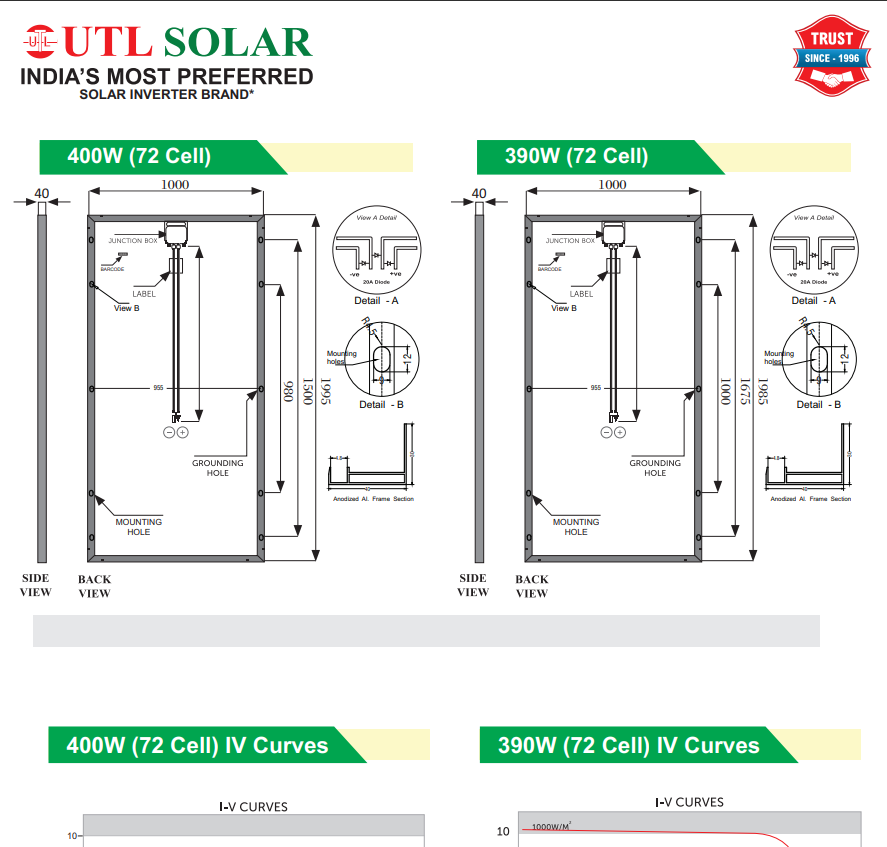

Module dimension:- 1995x1000x40mm

Weight:- 24 Kg

junction box:- IP67, 3 diode

Warranty:- 25 Years Performance & 10 Year Product Warranty



Download Data Sheet.
